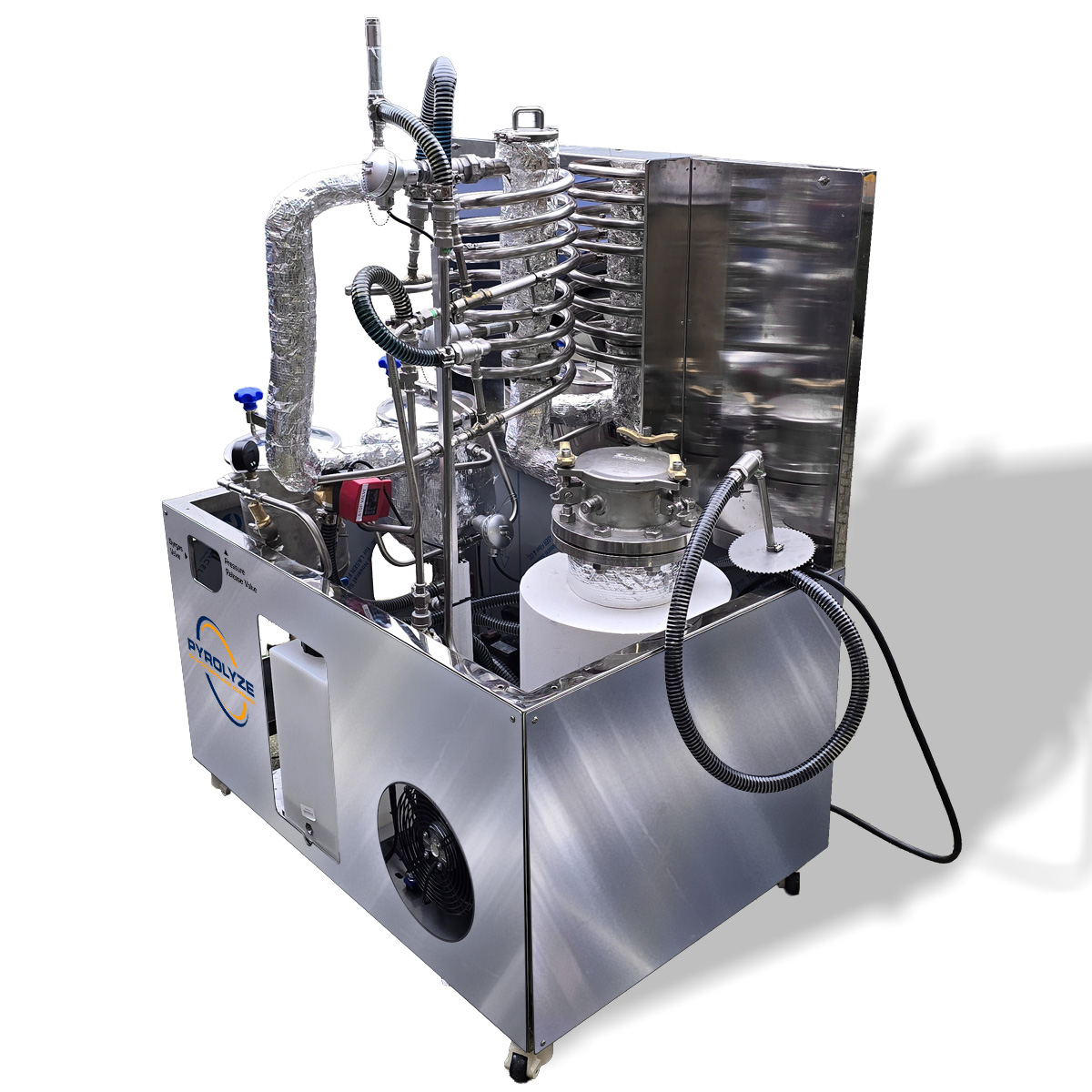

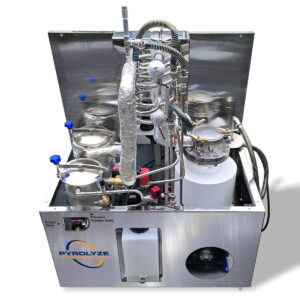

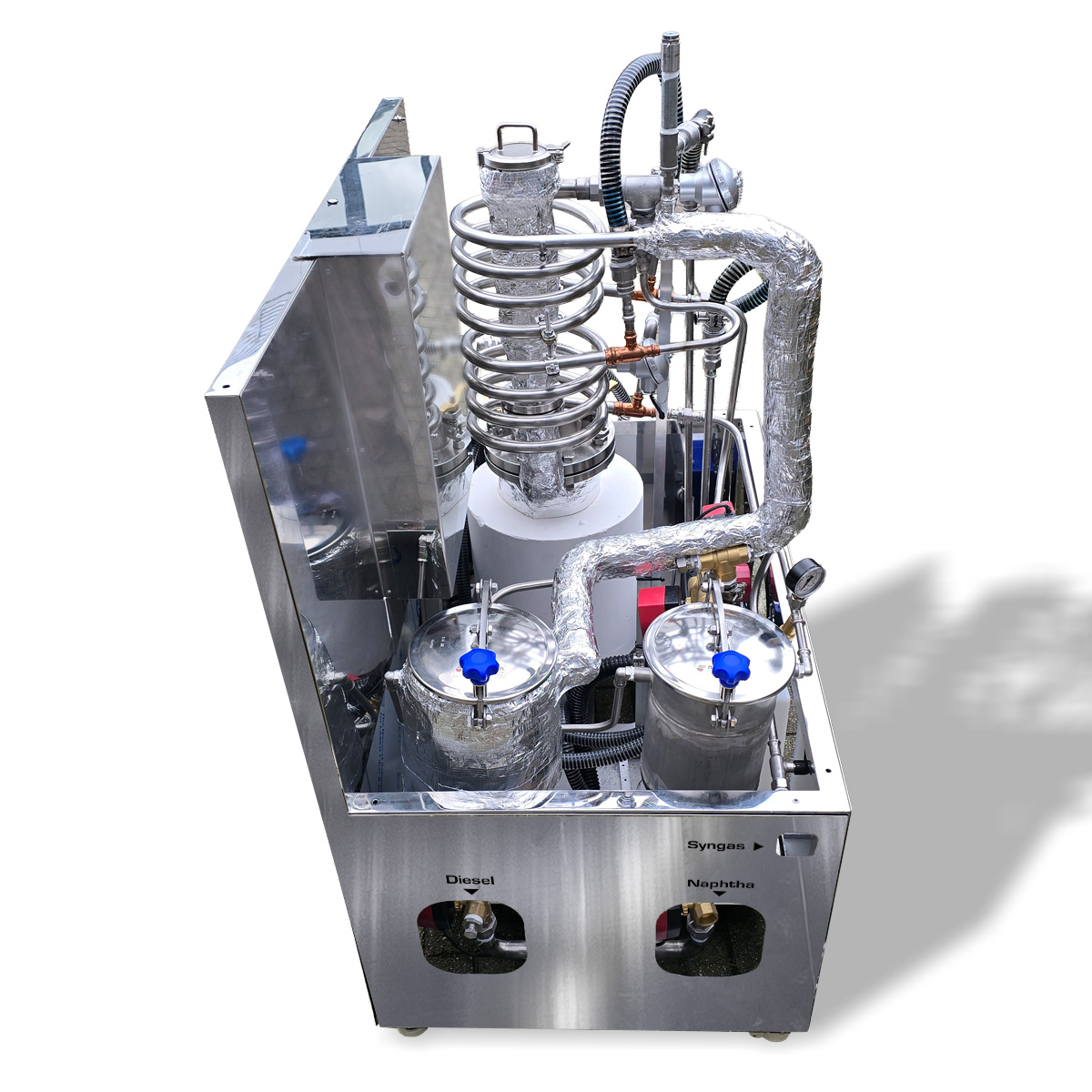

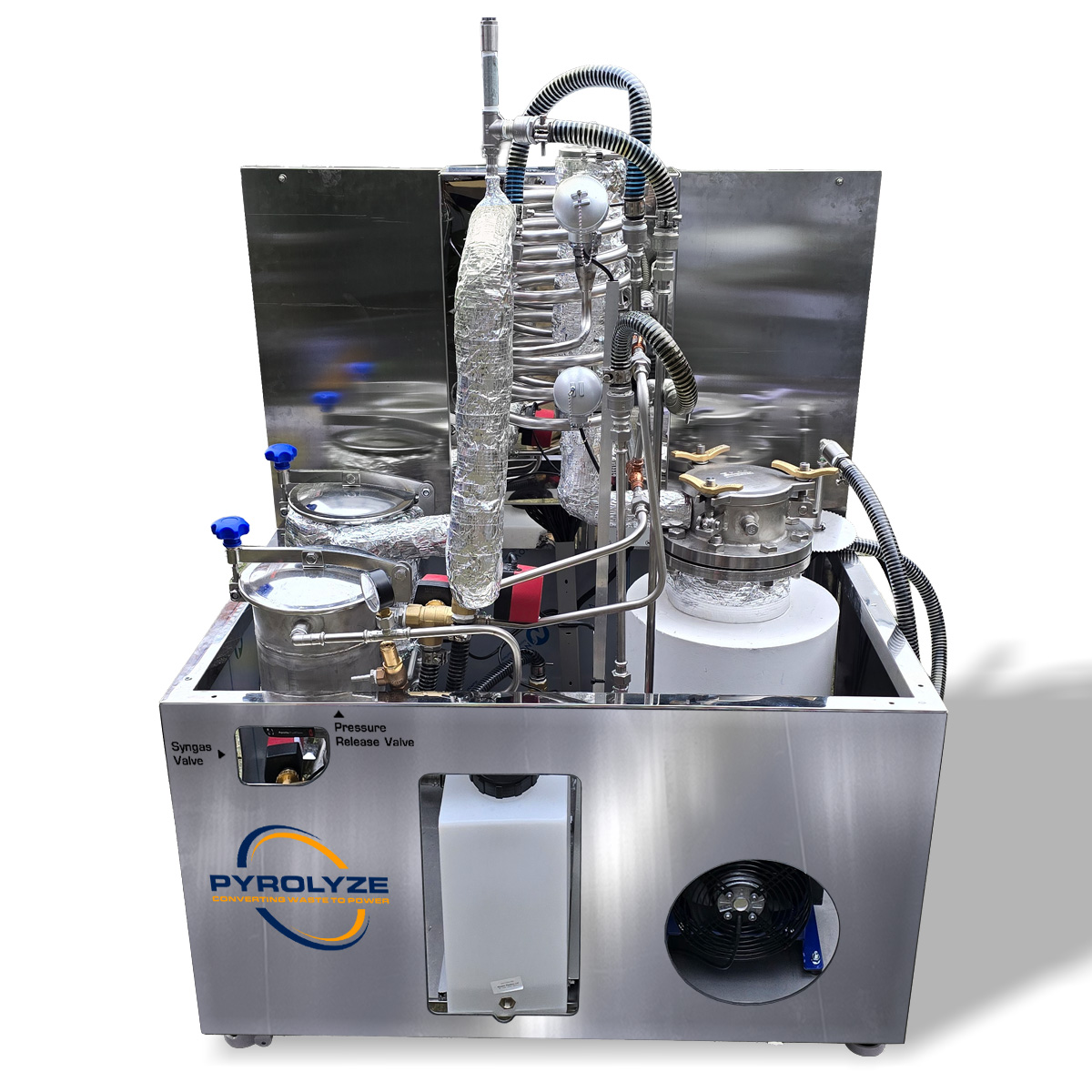

single line 3 kg waste plastics per batch pyrolysis demonstrator plant

single line 3 kg waste plastics per batch pyrolysis demonstrator plant

✔ Converts 3 kg waste plastics or 6 liters of WMO per batch in diesel oil and lighter oil fractions
✔ Comes with a single distillation line
✔ Perfect for pyrolysis demonstrator and research purposes
✔ Different settings and catalysts can be researched one batch after the other

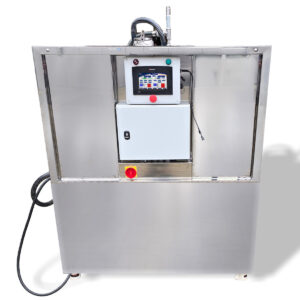

✔ Fully automated PLC with touch screen display

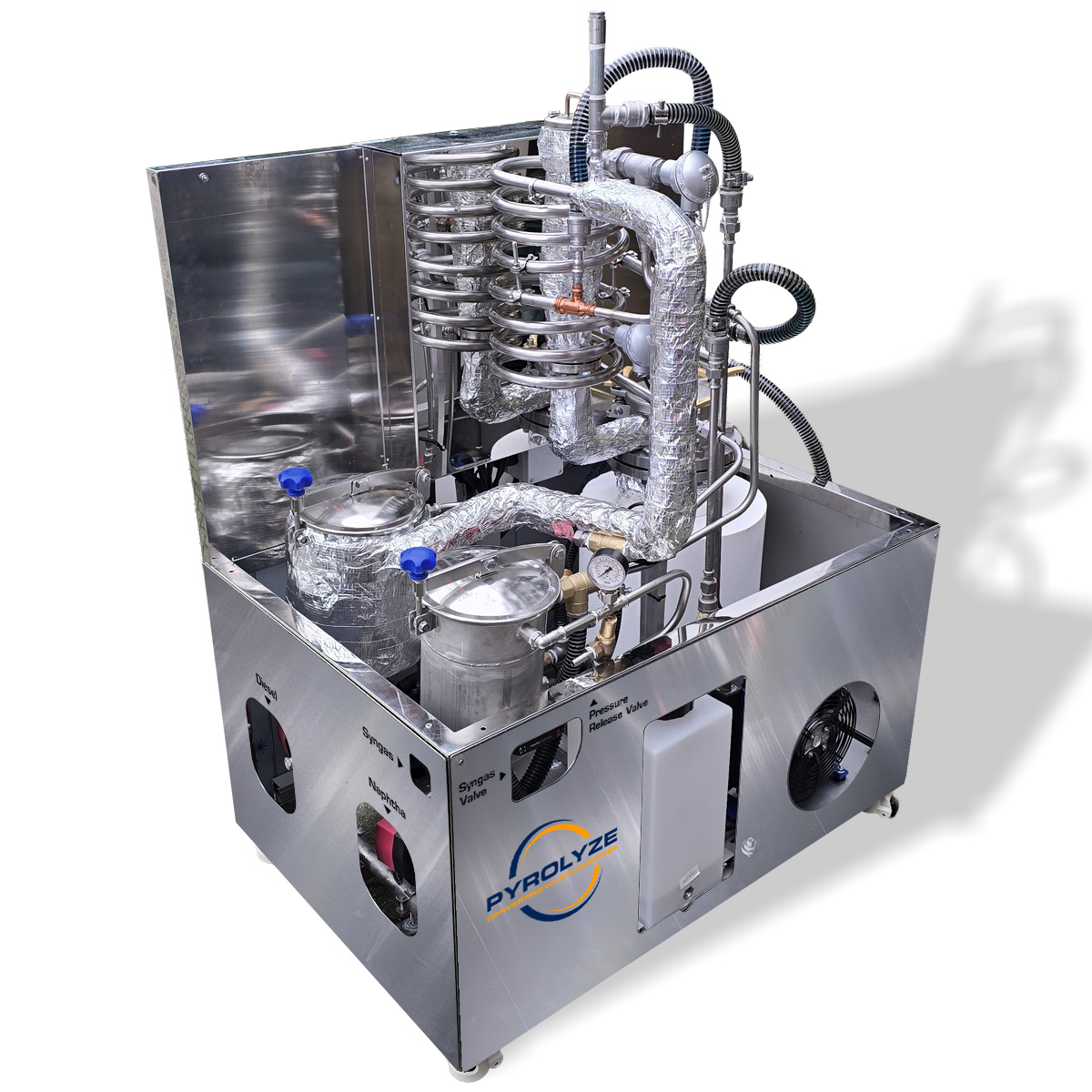

✔ Easily transportable demonstrator design on a rollable skid
✔ Price ex. VAT, EXW The Netherlands

The demonstrator pyrolysis plant efficiently converts mixed waste plastics or waste motor oil into diesel oil and lighter oil fractions. It is placed on a skid so it is easily transportable on a trailer. All components are pre-installed on the skid along with electric wiring & control panel. Ready for use. Just connect to electric power, water supply and start running the demonstrator plant. The demo plant consists of one distillation line, so different settings and catalysts can be researched one batch after the other.

Note: this is not a production unit, but a demonstrator plant. It’s an ideal tool for research institutes, laboratories and universities that want to research, develop and demonstrate the principles of pyrolysis technology.

Specifications

• demonstrator plant capacity: 3 kg of waste plastics (PE, PP and PS) or 6 liters of waste motor oil (WMO) per batch (batch time: 5 hours).
• HDPE (milk jugs), PP (baby bottles, yoghurt), LDPE (shopping bags, plastic wraps) and PS (plastic cutlery).
• These mixed plastics can be processed at the same time, no separation of these types is necessary.
• 85%-90% efficiency (85% for Plastics / 90% for WMO)
• revenue:
• ✔ diesel oil and lighter oil fractions (85%)
• ✔ waxy carbon black ash (15%)
• ✔ syngas (15%)
• electrical requirement: 3.5 kW @ 220v, 15A
• fully automated PLC controlled batch process
• demonstrator plant is built on a rollable skid and fixed inside a metal frame box
• machine dimensions (l/w/h): 1.855m x 0.762m x 1.5m
• shipping dimensions in wooden box: (l/w/h): 2m x 0.9m x 1.7m
• machine weight: 175 kg
• plant can be delivered to anywhere
• plant is operational directly after delivery
• simple installation:
• ✔ connect electric power cable
• ✔ connect to 200l water barrel for cooling
• ✔ start running the plant

FAQ

1) Q) Are the carbon ashes/residues toxic?

A) carbon ashes are non-toxic because all the plastic polymer is gone. Only black waxy mud is left. This can be used as a filler for rubber/tyres & also as road building material.

2) Q)How is the feedstock converted to oil and gas?

A) plastics are made from crude-oil and harmful chemicals like BPA, BPS, phthalates, xenoestrogens, lead and antimony.
When we heat plastic to 400 in absence of oxygen, it vaporizes back into oil-vapors. These oil vapors are condensed & collected as oil.

Payment Schedule

Payments will be made as follows:

• 100% prepayment

Prices are ex. VAT and EXW The Netherlands. Any customs fees are the responsibility of the customer.

Gurarantee

All equipment is guaranteed 1 year

Maintenance

The maintenance is relatively simple and can be carried out by the customer.

Installation

The plant is fully tested and delivered on the basis of a plug-and-play installation by the customer.

Commitment

• Pyrolyze B.V. undertakes to carry out the task specified in the order to its best effort and knowledge.
• Pyrolyze B.V. will deliver a pyrolysis plant as described in the offer.
• As it does not control the quality, properties, and behavior of the products to be treated in its equipment, Pyrolyze does not commit itself to guaranteeing results relating to obtaining chemical, physio-chemical, biological, sensory, chemical characteristics, chemical transformations or others, on the products processed.

Industrial Property

In the event that the present contract relates wholly or in part to the sale of a material, equipment or process patented by Pyrolyze B.V. or its partners, the customer will declare not to have filed or not to subsequently file any patent for the invention of process, device or use, utility certificate or equivalent related directly or indirectly to the equipment covered by the contract.

Non Disclosure and Confidentiality

In order to protect the industrial property upon entering the agreement the customer, for itself and its affiliates, intending to be legally bound, will irrevocably agree and guarantee to Pyrolyze B.V. that it shall not disclose or otherwise reveal directly or indirectly, to any third party of any nature, any Confidential Information or Confidential Source provided by Pyrolyze B.V. to another Party hereto, or otherwise acquired, without the prior specific written consent of Pyrolyze B.V. providing such information or as otherwise required by law.

Legal basis

The order contract shall be governed by and construed and enforceable in accordance with the applicable laws of The Netherlands. Also the general terms and conditions apply.
